A-CCTV
A-TESTER-7-5IN1-4K
Tester para hdtvi / hdcvi / ahd / cvbs / ip en 8 megapíxeles
Sign in to see the price
Quantity1

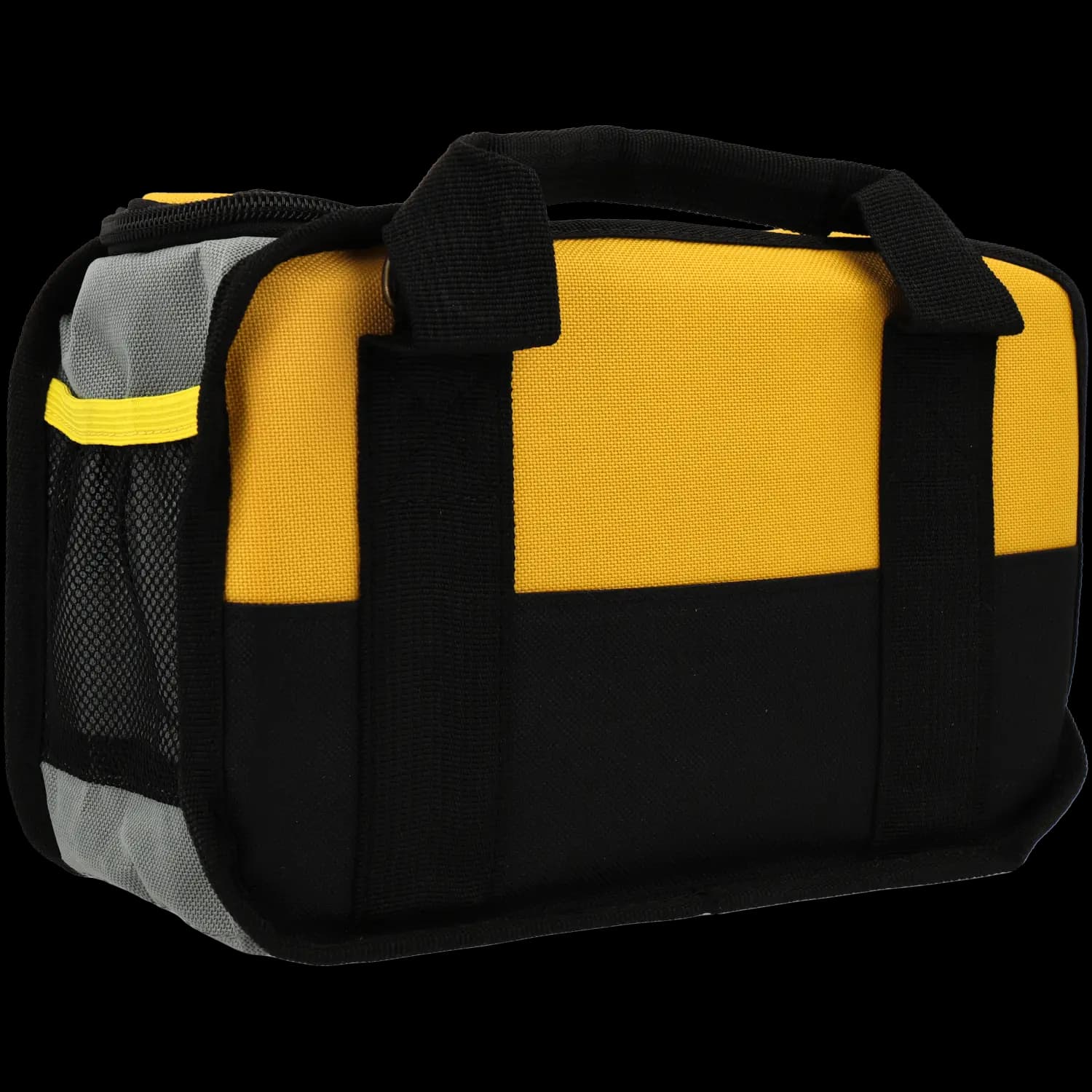

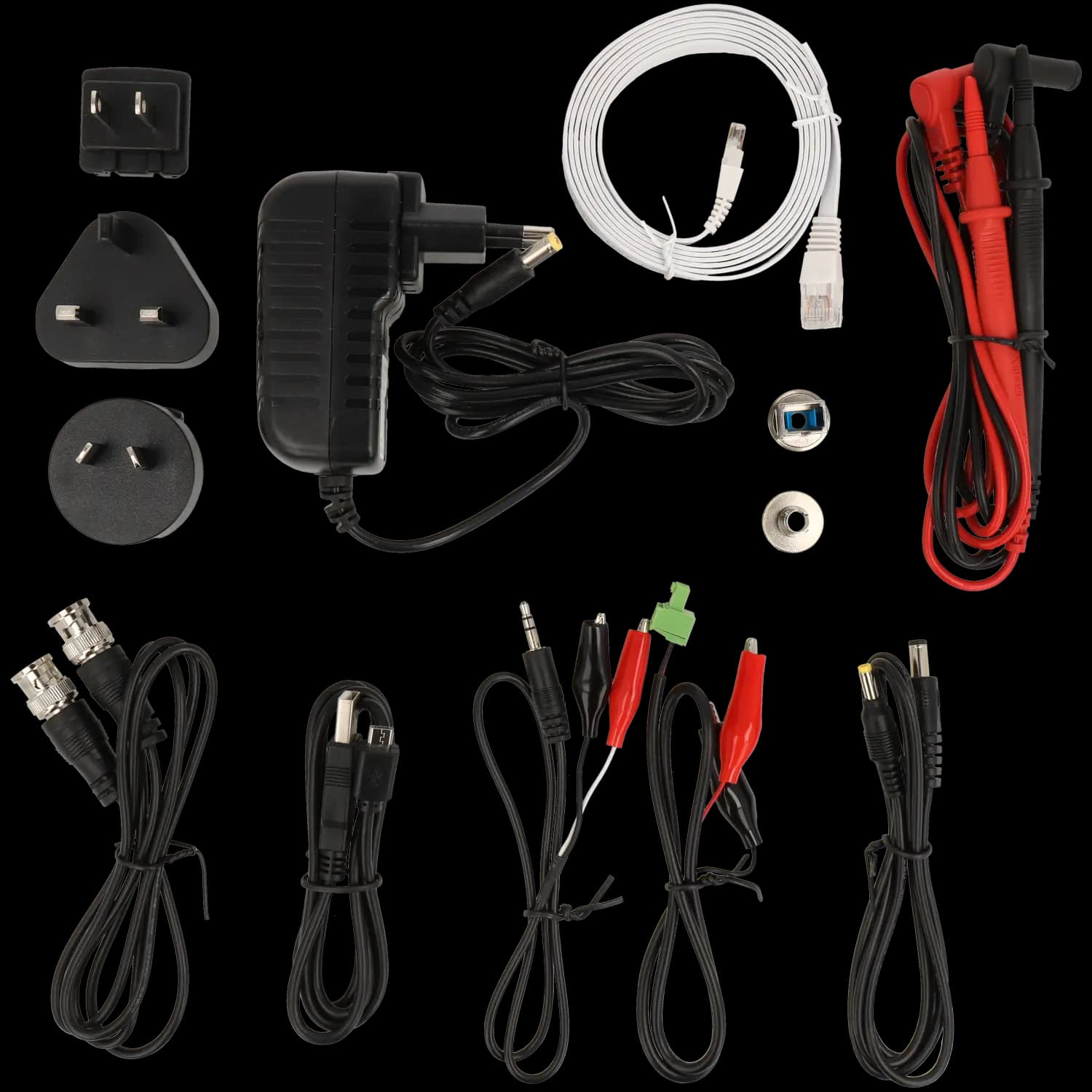

accessories
A-CCTV
A-TESTER-7-5IN1-4K
specifications and features
General information
Technology5 IN 1 (HD-CVI, HD-TVI, AHD, analog and IP)
Power consumption
Power modeDC
Voltage12V
Amperage1500mA
Built in batteryYes, 2 x 2500mAh
Power outputDC 12V
Maximum consumption2A
Ambient
Operating temperature-10 ºC ~ 55 ºC
Relative humidity30% ~ 90% RH
Material and dimensions
Dimensions236.5 x 133 x 45 mm
Net weight930 g
Video
Video formatsHDCVI / TVI / AHD / CVBS / IP
Admitted resolutions HDCVI8 Megapíxeles
Admitted resolutions HDTVI8 Megapíxeles
Admitted resolutions AHD5 Megapíxeles
Cameras CVBSYes
Resolution IP cameras8 Megapíxeles

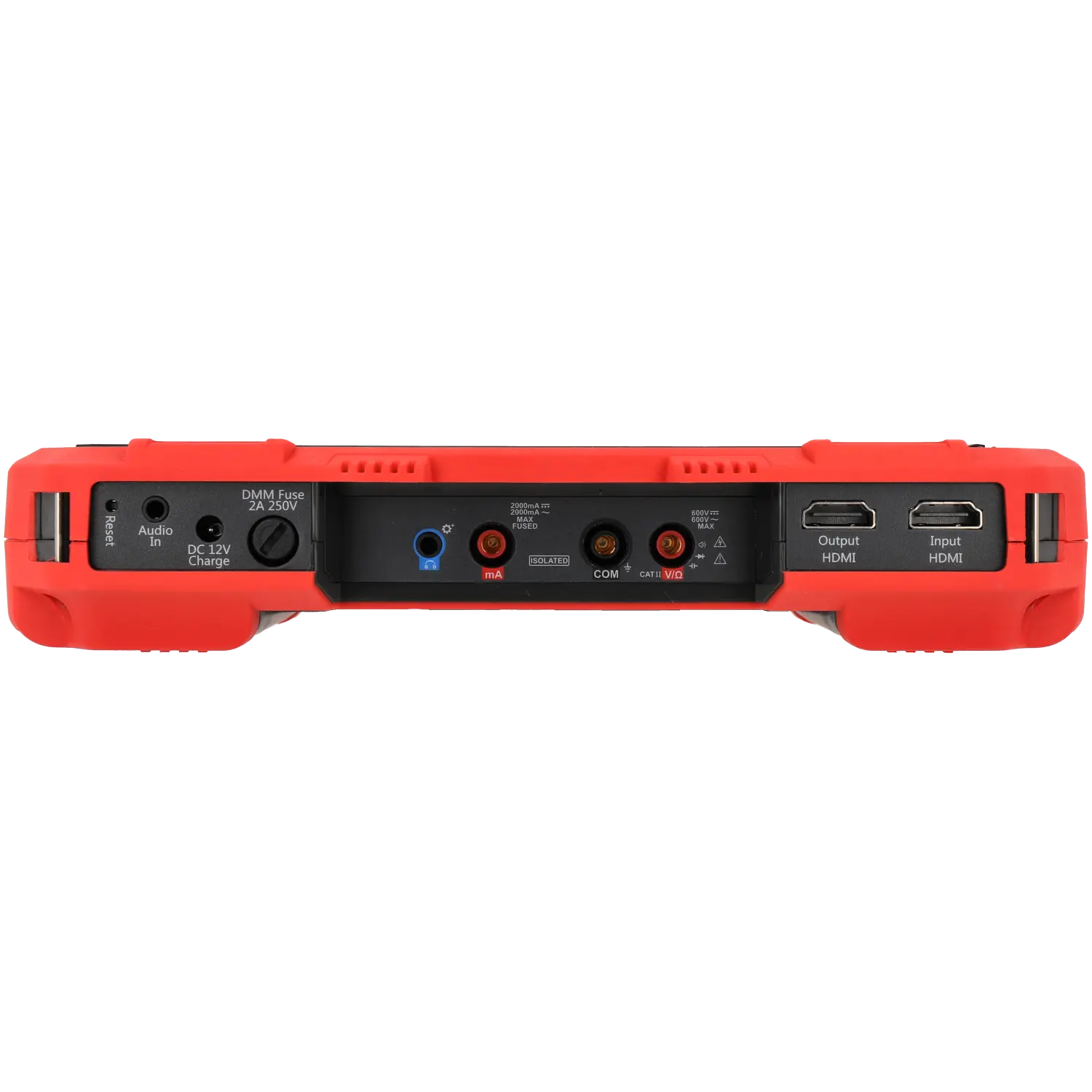

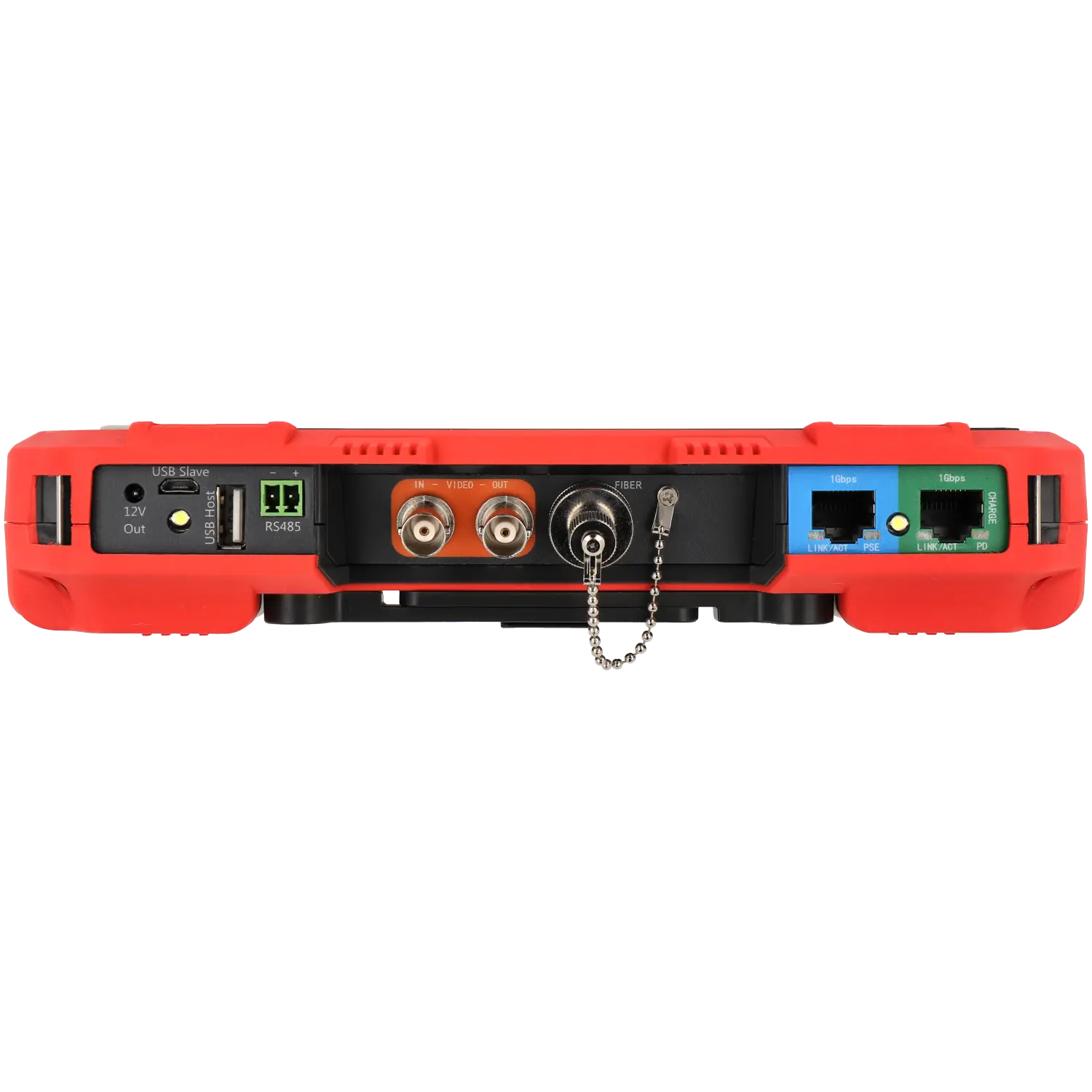

INPUTS
HDMI1 (720p)
Audio1
USB1
BNC1
RJ452
Micro USB1
Conector Fibra1
OUTPUTS
BNC1
HDMI1
RS4851
PoE1
CHARACTERISTICS (TESTER)
ScreenTFT-LCD 7”
FormatsHDTVI / HDCVI / AHD / CVBS / IP
Video settingsBrightness / contrast / saturation
Analog video testSí
UTP / COAXIAL cable break functionSí
Digital multimeterVoltage / Current / Resistance / Diode (Conductivity) / Capacity
Screen resolution1920 x 1200
RJ45 speed10/100/1000 Mbps
SpeakerYes
MultilanguageYes
CodecH.265 / H.264
