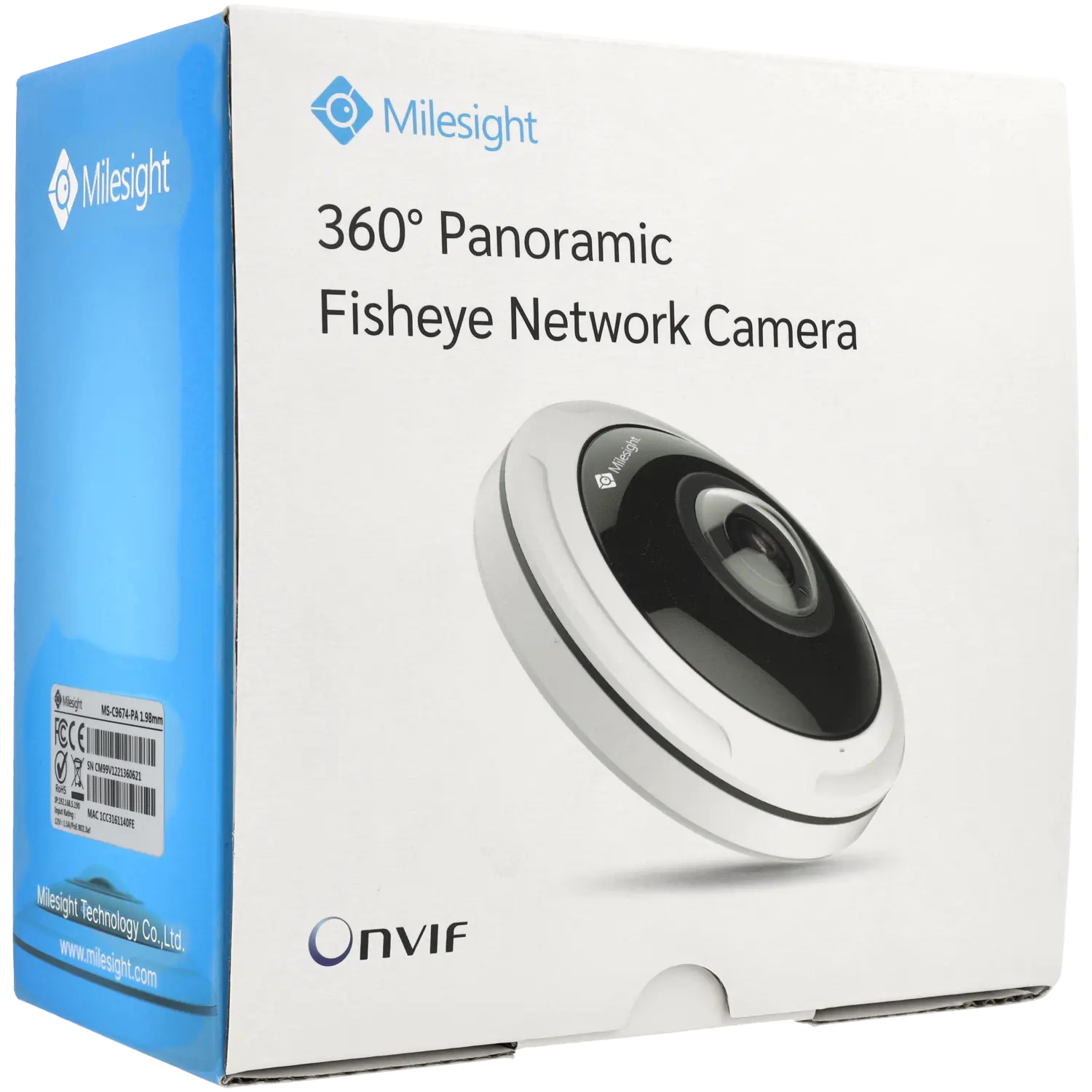

MILESIGHT
MS-C9674-PA
Fisheye ip camera of 12 megapíxeles and fix lens
- Video Resolution: 12 Megapíxels
- Lens Type: Fix
- Serie: AI Panoramic Camera Series
- Focal distance: 1.98 mm
Sign in to see the price
Quantity1

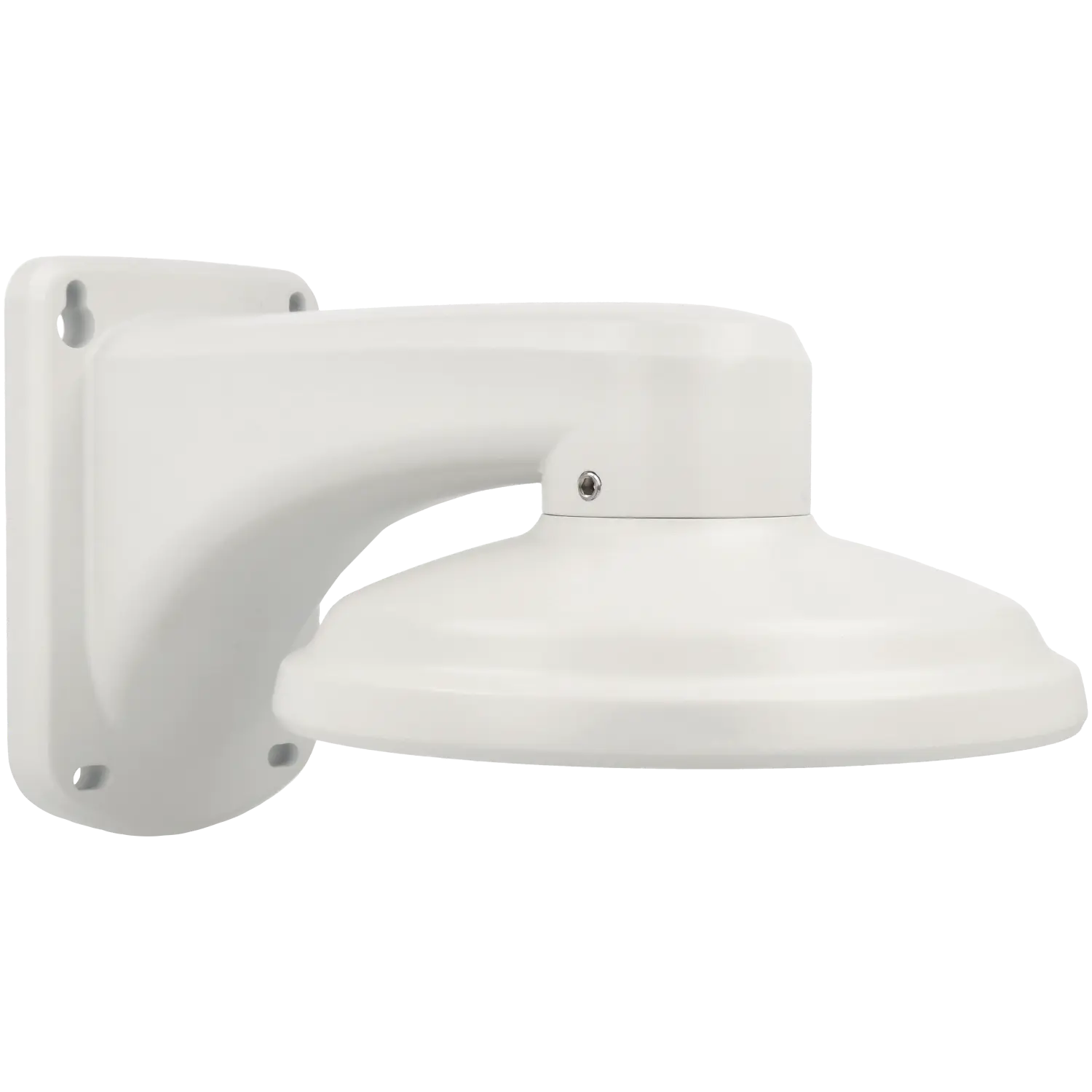

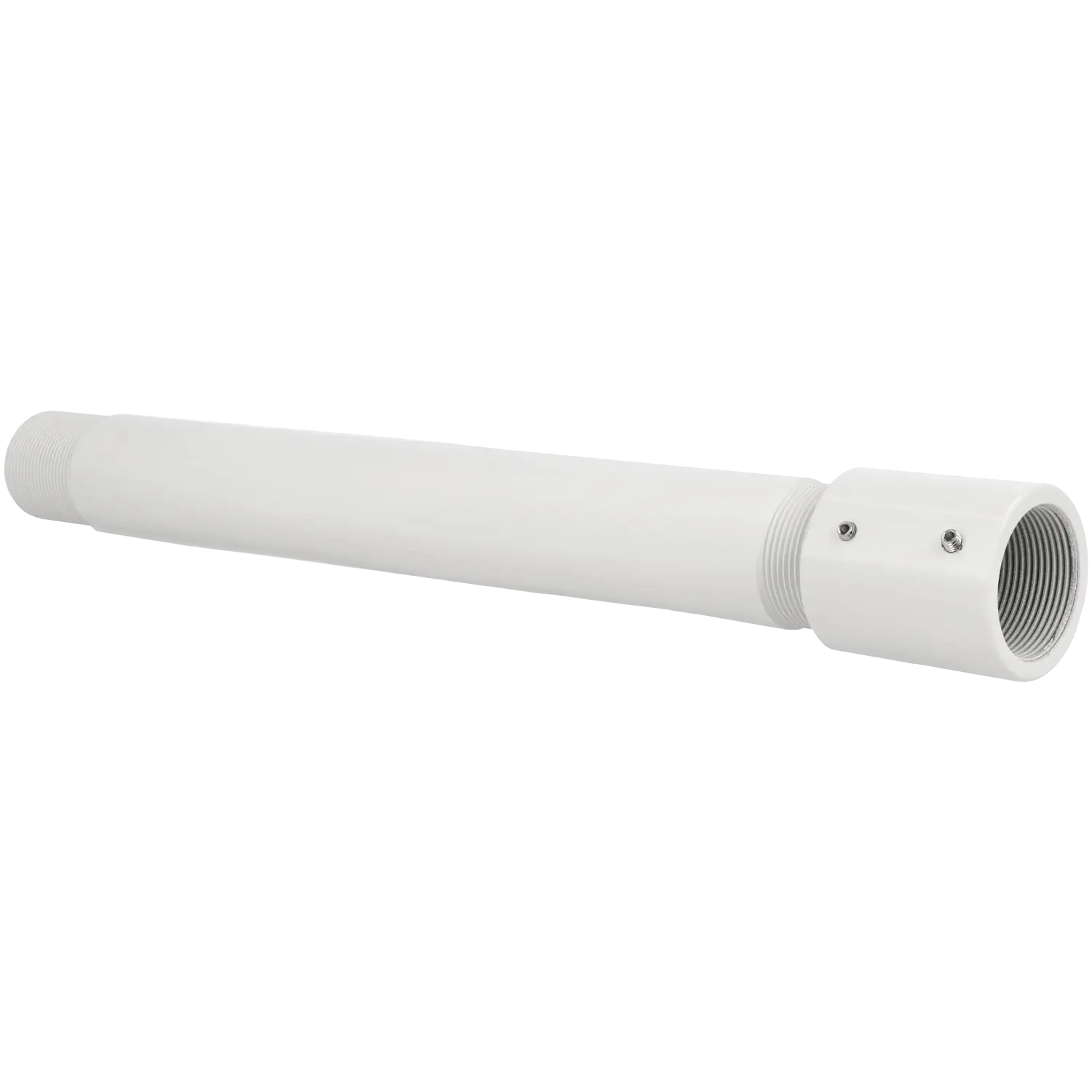

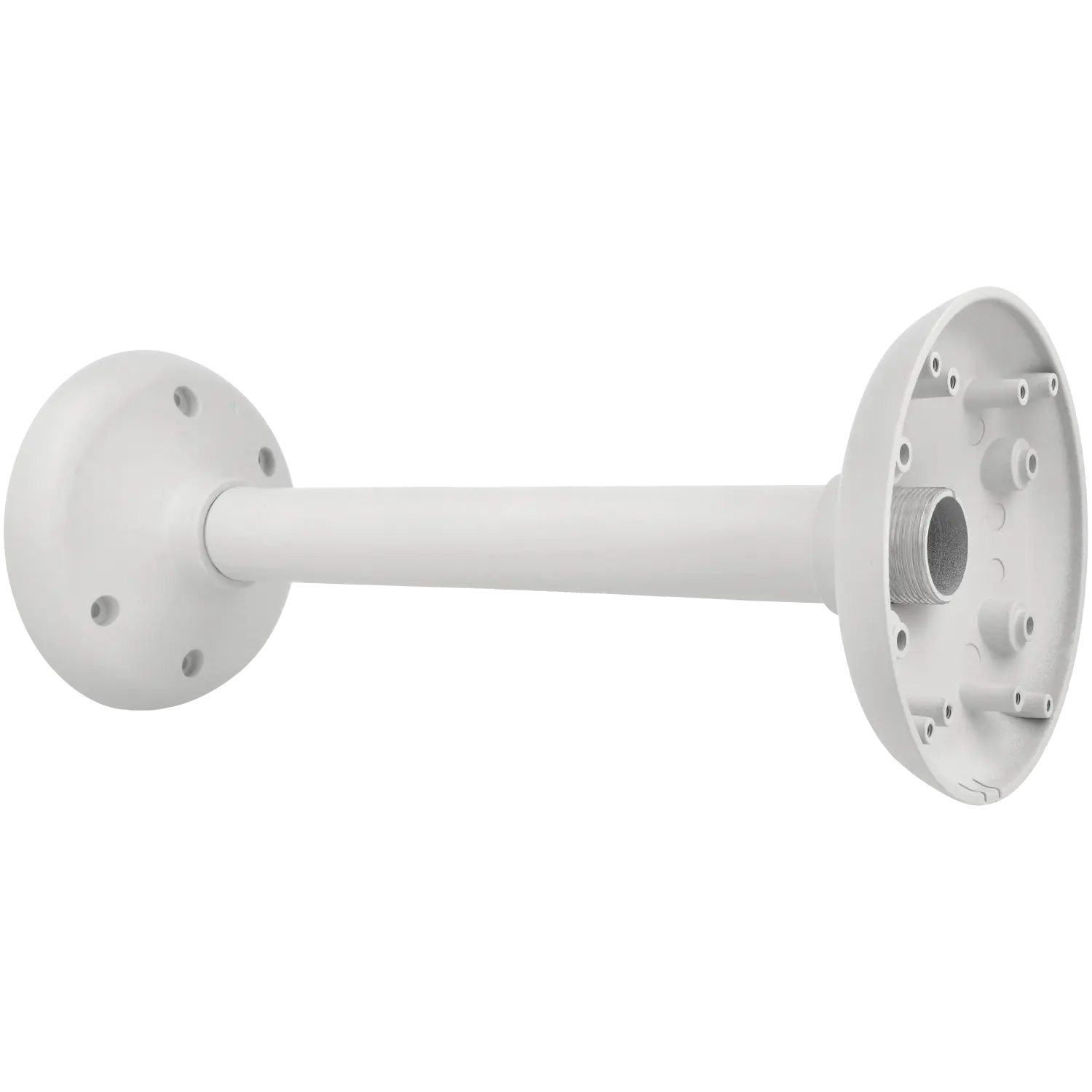

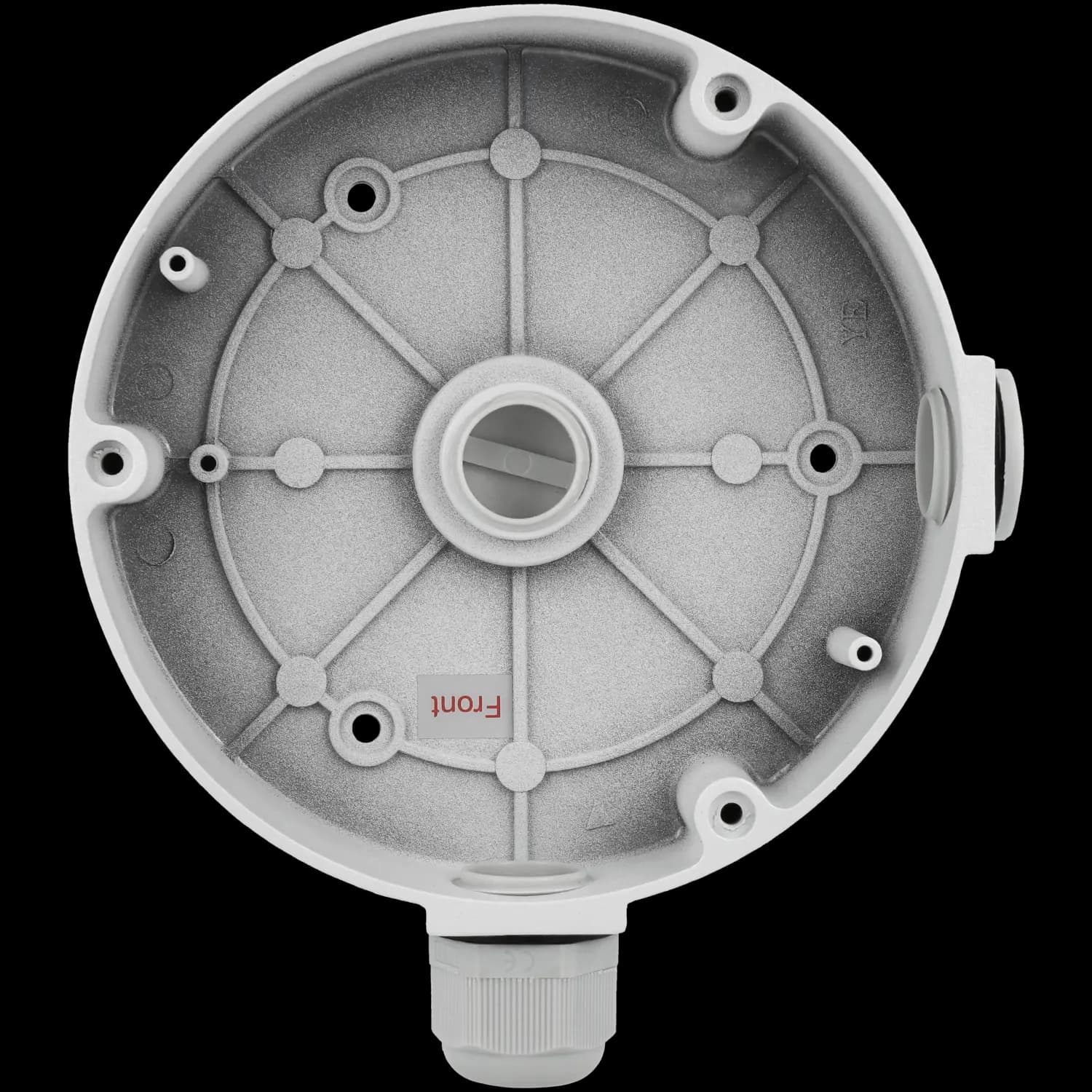

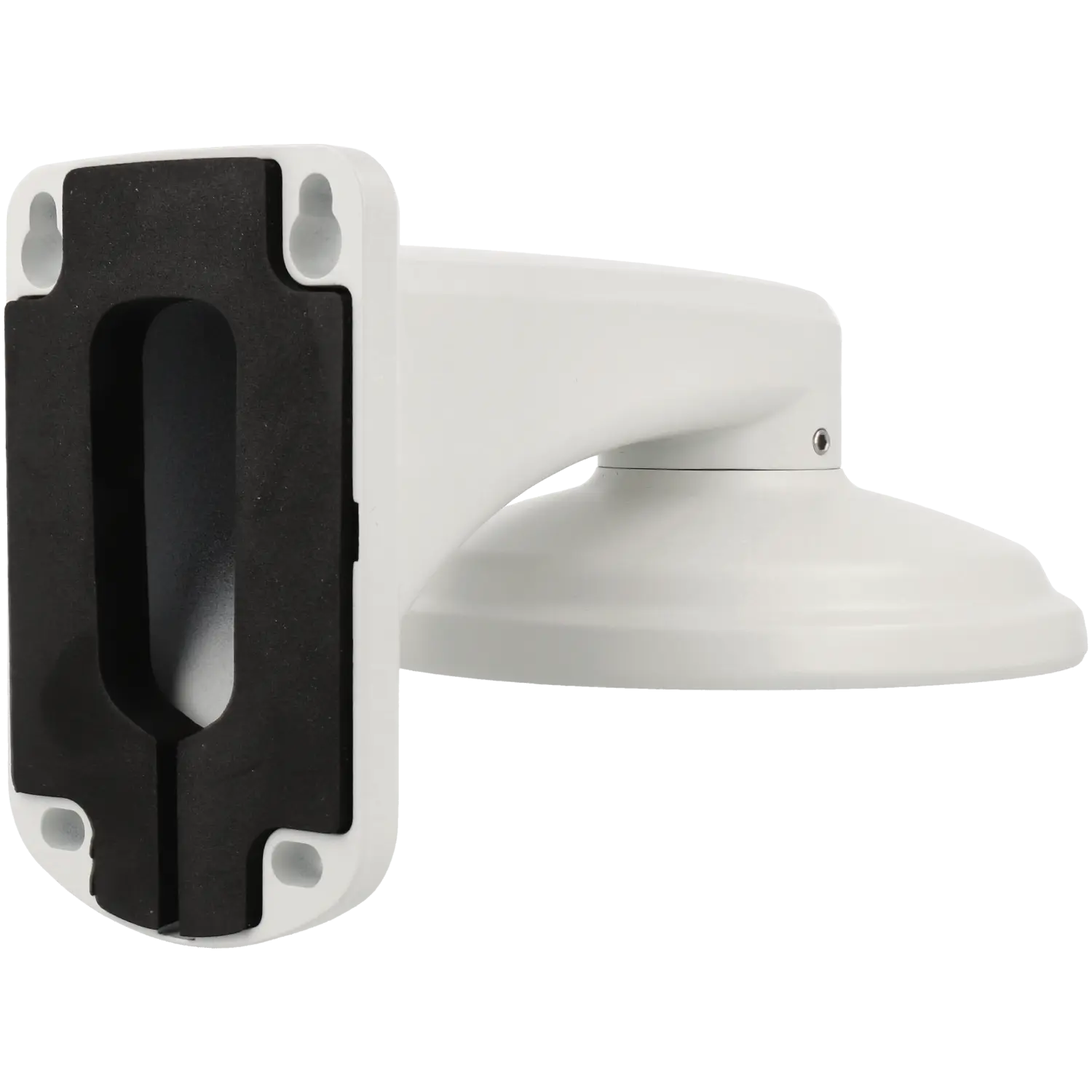

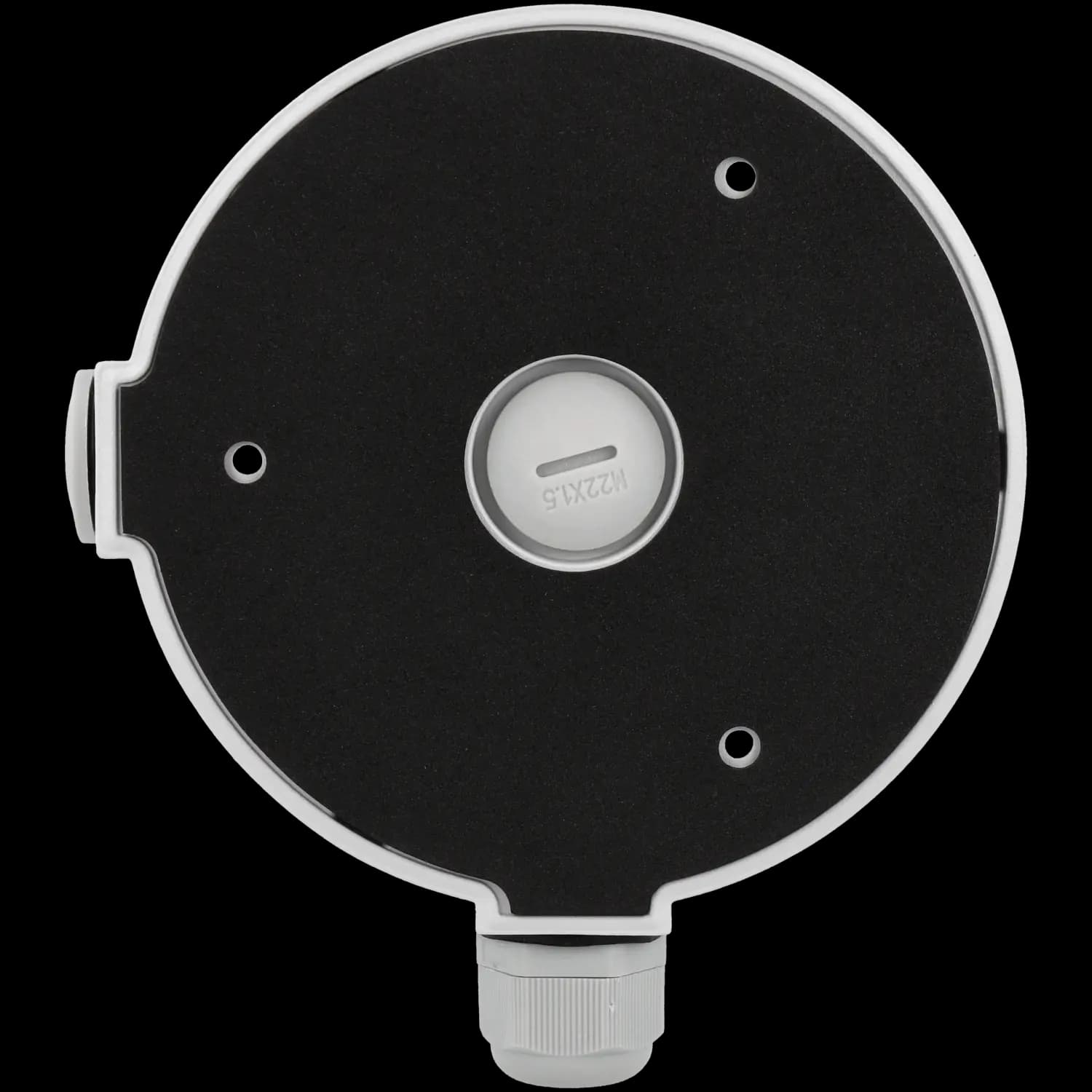

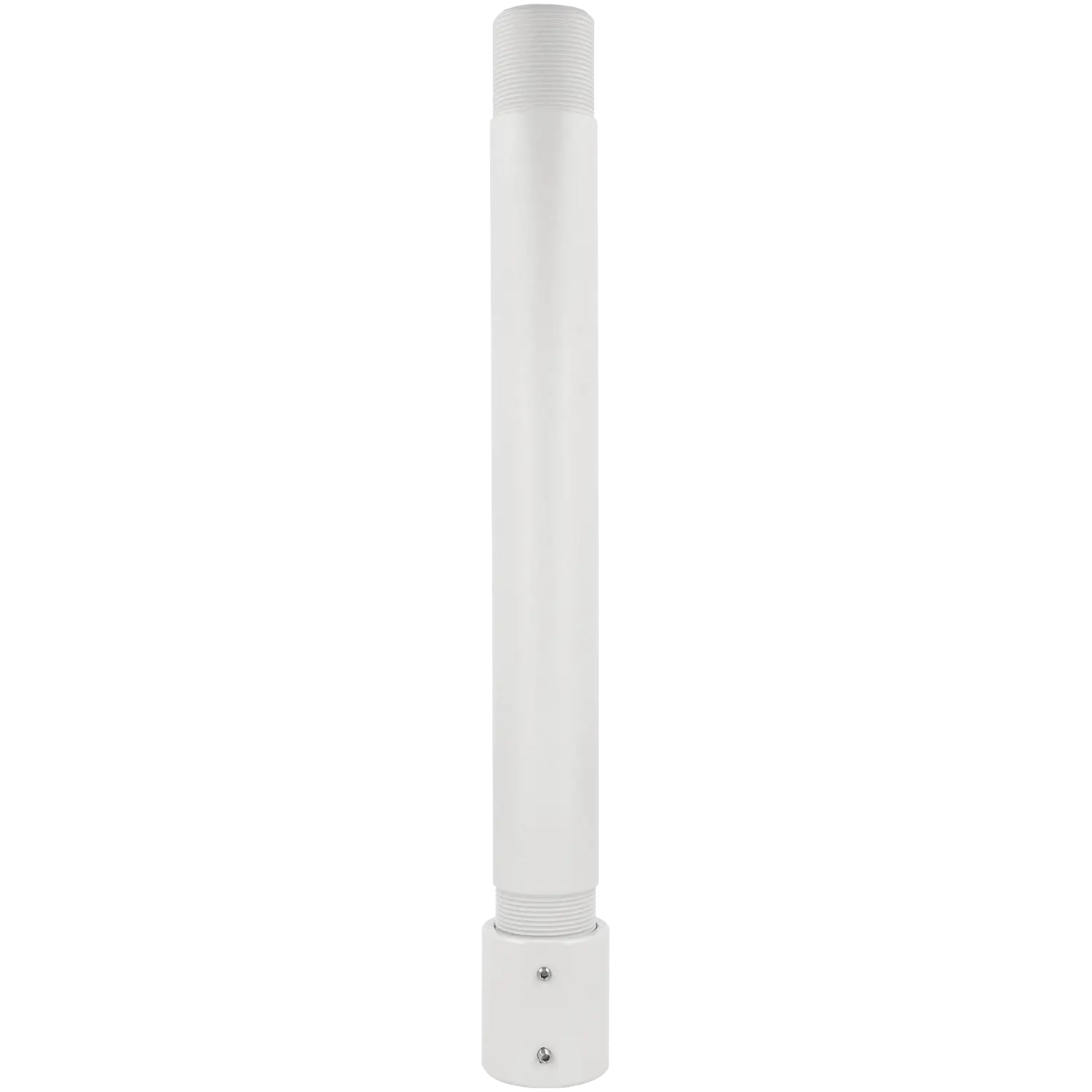

accessories
detect
44 m
perception of moving objects without classifying them
observe
17 m
differentiation between people, animals or vehicles
recognise
9 m
distinction between a man or a woman
identify
4 m
facial identification, number plate visualisation
MILESIGHT
MS-C9674-PA
specifications and features
General information
SerieAI Panoramic Camera Series
TechnologyIP
Type of cameraFisheye
SensorCMOS ®
Sensor resolution4000 x 3000
Sensor Size1/1.7
Electronic shutter speed1s to 1/100,000s
Minimum lighting0.01Lux
Ratio S / NMore than 55dB
Power consumption
Power modeDC
Voltage12V
Consumption (w)11W
Amperage920mA
PoE powerYes
Type PoEPoE 802.3af
Ambient
Operating temperature-40 ºC ~ 60 ºC
Degree of protectionIP67
Anti vandalIK10
UseIndoor-outdoor
Maximum humidity90%
Night vision
Night vision distance15 m
Type of night visionIR
Smart IRYes
Material and dimensions
Dimensions45.4 x 140 (Ø) mm
Net weight700 g
Weight with packaging850 g
Lens
Lens TypeFix
Focal distance1.98 mm
Maximum diaphragm openingF/2.8
Angle of View360º
DISTANCE DORI
Detect44 m
Observe17 m
Recognize9 m
Identify4 m
Axes
MotionMotionless
Video (Cameras)
Video Resolution12 Megapíxels
BLCYes
HLCYes
3D-NRYes
AGCYes
AWBYes
WDRWDR (120 dB)
Images per second25fps
Video outputRJ45
Day / night modeAutomatic / Manual
Privacy maskUp to 24 zones
Type of CodexCBR / VBR
Bit rate16Kbps ~ 16Mbps
CompressionH.265+ / H.265 / H.264
Main stream3000 x 3000 / 2560 x 2560 / 1920 x 1920 / 1280 x 1280 (1 ~ 25fps)
Sub stream1.3Mpx / 1024 x 1024 / 736 x 736 / 576 x 576 (1 ~ 25fps)
WatermarkYes
Anti flapYes
AUDIO(CAMERAS)
Built in microphoneYes
Audio input1 Input
Audio compressionG.711 / G.722 / G.726 / AAC
Sampling frequency8 kHz 16 kHz 32 kHz 44.1 kHz 48 kHz
Bit rate 16 Kbps ~ 256 Kbps
Audio output1
Network features
IP connection1 RJ45 (10M / 100M / 1000M)
ONVIFYes, type S, G, T and Q
Management softwareMilesight CMS
IP address filterYes
Network disconnectionYes
Video analysis
Detection typeAnalytical with human/vehicle classification in line/area crossing
AI FunctionsPeople counting, heat map
Auto trackingYes
Crossing lineYes
Motion detectionYes
Abandoned objectYes
Missing objectYes
Video TamperYes
HeatmapYes
People countingYes
Loitering detectionYes
Classification Human / vehicleYes
Storage
MicroSD-CardUp to 256Gb
Storage Systems NAS / Micro SD / Recorder
ANR (Redundant Recording in SD)Yes
System (Cameras)
Reset buttonYes
DORI distance
Detect44 m
Observe17 m
Recognise9 m
Identify4 m
