DAHUA
HAC-HDBW1500R-Z-S2
Minidome hd-cvi camera of 5 megapixels and optical zoom lens
- Video Resolution: 5 Megapixels
- Lens Type: Optical zoom
- Focal distance: 2.7 mm ~ 12 mm
- Night vision distance: 30 m
Sign in to see the price
Quantity1
accessories
- 1
Ambient
Degree of protection: IP67
Anti vandal: IK10
- 2

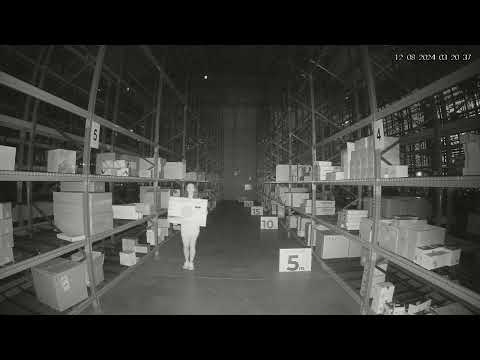

Night vision
Night vision distance: 30 m
Type of night vision: IR
- 3
Lens
Lens Type: Optical zoom
Focal distance: 2.7 mm ~ 12 mm
- 4
Video (Cameras)
Video Resolution: 5 Megapixels

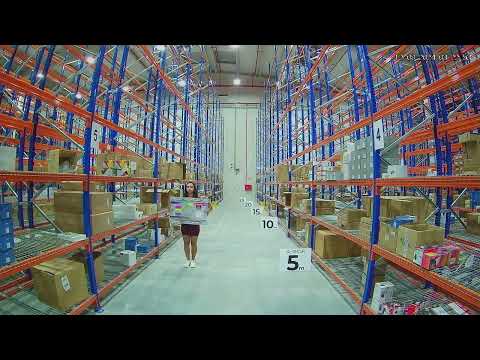

detect
fixed lensvarifocal lens
69 m / 192 m
perception of moving objects without classifying them
observe
fixed lensvarifocal lens
28 m / 77 m
differentiation between people, animals or vehicles
recognise
fixed lensvarifocal lens
14 m / 38 m
distinction between a man or a woman
identify
fixed lensvarifocal lens
7 m / 19 m
facial identification, number plate visualisation
DAHUA
HAC-HDBW1500R-Z-S2
specifications and features
General information
SerieLITE
TechnologyHD-CVI
Type of cameraMinidome
SensorCMOS ®
Sensor resolution2880 x 1620
Sensor Size1/2.7'
Electronic shutter speed1/25 ~ 1/100000s
Minimum lighting0.005Lux
Ratio S / NMore than 65dB
Power consumption
Power modeDC
Voltage12V
Consumption (w)5.5W
Amperage460mA
Ambient
Operating temperature-30 ºC ~ 70 ºC
Degree of protectionIP67
Anti vandalIK10
UseIndoor-outdoor
Maximum humidity95%
Night vision
Night vision distance30 m
Type of night visionIR
Number of LEDs2
IR ON/OffAutomatic / Manual
Smart IRYes
StarlightYes
Material and dimensions
Dimensions89 x 122 (Ø) mm
MaterialMetal
Net weight470 g
Weight with packaging620 g
Lens
Lens TypeOptical zoom
Focal distance2.7 mm ~ 12 mm
Maximum diaphragm openingF/1.6
Angle of View34º ~ 107º
Minimum focus distance500mm
DISTANCE DORI
Detect (Open lens)69 m
Detect (Closed Lens)192 m
Observe (Open lens)28 m
Observe (Closed lens)77 m
Recognize (Open lens)14 m
Recognize (Closed lens)38 m
Identify (Open lens)7 m
Identify (Closed lens)19 m
Axes
Motion3-Axis
Video (Cameras)
Video Resolution5 Megapixels
BLCYes
HLCYes
2D-NRYes
AGCYes
AWBYes
WDRDWDR
Images per second25fps
Video output1 x BNC switchable HD-CVI / HD-TVI / AHD / CVBS
Day / night modeAutomatic
OSD menuYes
Privacy maskUp to 8 zones
MirrorOn / Off
DORI distance
Detect69 m / 192 m
Observe28 m / 77 m
Recognise14 m / 38 m
Identify7 m / 19 m
