DAHUA
HAC-HDW2241T-Z-A-S2-DIP
Minidome hd-cvi camera of 2 megapixels and optical zoom lens
- Video Resolution: 2 Megapixels
- Lens Type: Optical zoom
- Focal distance: 2.7 mm ~ 13.5 mm
- Night vision distance: 60 m
Sign in to see the price
Quantity1
accessories
- 1
Ambient
Degree of protection: IP67
- 2

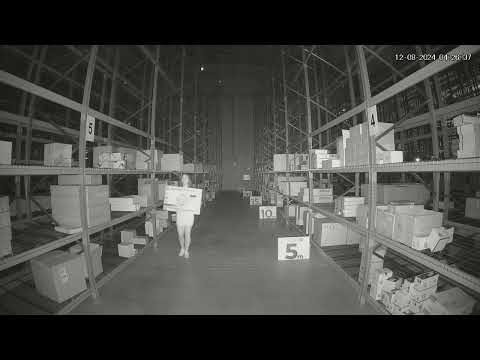

Night vision
Night vision distance: 60 m
Type of night vision: IR
- 3
Lens
Lens Type: Optical zoom
Focal distance: 2.7 mm ~ 13.5 mm
- 4
Video (Cameras)
Video Resolution: 2 Megapixels

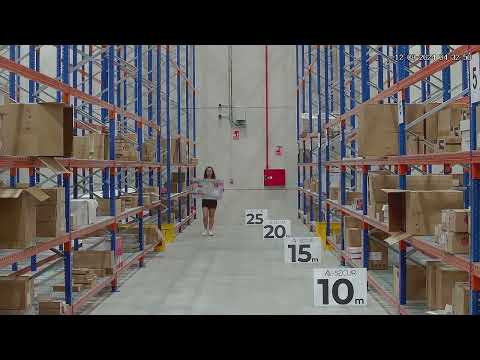

detect
fixed lensvarifocal lens
44 m / 145 m
perception of moving objects without classifying them
observe
fixed lensvarifocal lens
18 m / 58 m
differentiation between people, animals or vehicles
recognise
fixed lensvarifocal lens
9 m / 29 m
distinction between a man or a woman
identify
fixed lensvarifocal lens
4 m / 15 m
facial identification, number plate visualisation
DAHUA
HAC-HDW2241T-Z-A-S2-DIP
specifications and features
General information
SeriePRO
TechnologyHD-CVI
Type of cameraMinidome
SensorCMOS ®
Sensor resolution1920 x 1080
Electronic shutter speed1/25 ~ 1/100000s
Minimum lighting0.001Lux
Ratio S / NMore than 65dB
Power consumption
Power modeDC
Voltage12V
Consumption (w)6.4W
Amperage550mA
Ambient
Operating temperature-30 ºC ~ 60 ºC
Degree of protectionIP67
UseIndoor-outdoor
Maximum humidity95%
Night vision
Night vision distance60 m
Type of night visionIR
Number of LEDs2
IR ON/OffYes
StarlightYes
Material and dimensions
Dimensions104.8 x 122 (Ø) mm
MaterialMetal
Net weight580 g
Weight with packaging770 g
Lens
Lens TypeOptical zoom
Focal distance2.7 mm ~ 13.5 mm
Maximum diaphragm openingF/1.5
Angle of View108º ~ 30º
Minimum focus distance800mm
DISTANCE DORI
Detect (Open lens)44 m
Detect (Closed Lens)145 m
Observe (Open lens)18 m
Observe (Closed lens)58 m
Recognize (Open lens)9 m
Recognize (Closed lens)29 m
Identify (Open lens)4 m
Identify (Closed lens)15 m
Axes
Motion3-Axis
Video (Cameras)
Video Resolution2 Megapixels
BLCYes
HLCYes
3D-NRYes
AGCYes
AWBYes
WDRWDR (130 dB)
Images per second25fps
Video output1 x BNC switchable HD-CVI / HD-TVI / AHD / CVBS
Day / night modeAutomatic
Privacy maskUp to 8 zones
MirrorOn / Off
AUDIO(CAMERAS)
Built in microphoneYes
Inputs/Outputs (Cameras)
DIP-SchalterYes
DORI distance
Detect44 m / 145 m
Observe18 m / 58 m
Recognise9 m / 29 m
Identify4 m / 15 m
