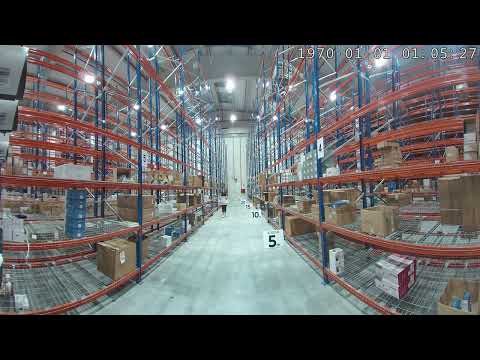

detect
50 m
perception of moving objects without classifying them
observe
19 m
differentiation between people, animals or vehicles
recognise
10 m
distinction between a man or a woman
identify
5 m
facial identification, number plate visualisation
MILESIGHT
MS-C8176-PE
specifications and features
General information

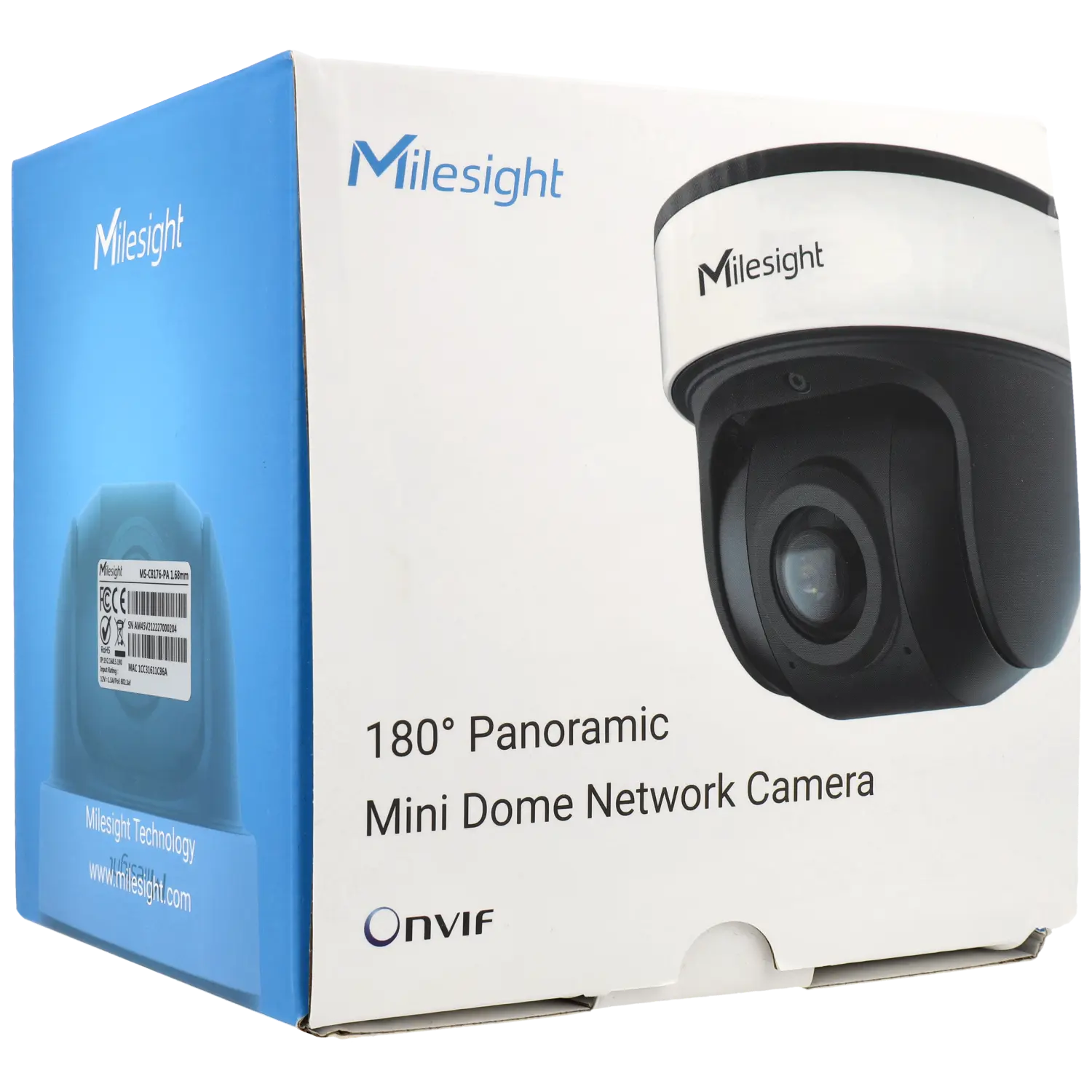

SerieAI Panoramic Camera Series
TechnologyIP
Type of cameraMinidome
SensorCMOS ®
Sensor resolution3840 x 2160
Sensor Size1/2.8'
Electronic shutter speed1s to 1/100,000s
Minimum lighting0.012Lux
Ratio S / NMore than 55dB
Power consumption
Power modeDC
Voltage12V
Consumption (w)10W
Amperage850mA
PoE powerYes
Type PoEPoE 802.3af
Ambient
Operating temperature-40 ºC ~ 60 ºC
Degree of protectionIP67
Anti vandalIK10
UseIndoor-outdoor
Maximum humidity95%

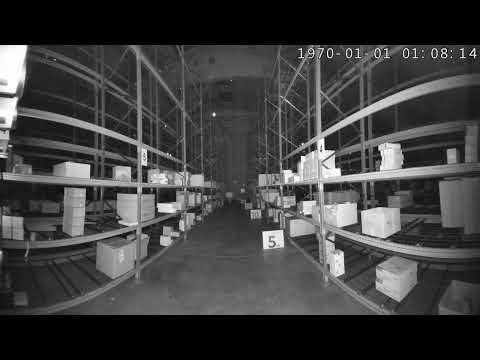

Night vision
Night vision distance15 m
Type of night visionIR
Number of LEDs2
StarlightYes
Material and dimensions
Dimensions107 x 122 (Ø) mm
MaterialMetal
Net weight850 g
Weight with packaging1050 g
Lens
Lens TypeFix
Focal distance1.68 mm
Maximum diaphragm openingF/2.0
Angle of View180°
DISTANCE DORI
Detect50 m
Observe19 m
Recognize10 m
Identify5 m
Axes
Motion2-Axis
Video (Cameras)
Video Resolution8 Megapixels
BLCYes
HLCYes
3D-NRYes
AGCYes
AWBYes
WDRWDR (120 dB)
Images per second25fps
Video outputRJ45
Day / night modeAutomatic / Manual
Privacy maskUp to 8 zones
Type of CodexCBR / VBR
Bit rate16Kbps ~ 16Mbps
CompressionH.265+ / H.265 / H.264
Main stream4K / 6Mpx / 5Mpx / 4Mpx / 3Mpx / 1080P / 720P (1 ~ 25fps)
Sub stream704 x 576 / 640 × 480 / 640 × 360 (1 ~ 25fps)
Sub stream 2720P / 704 x 576 / 640 x 480 / 640 x 360 (1 ~ 25fps)
WatermarkYes
Anti flapYes
AUDIO(CAMERAS)
Built in microphoneYes
Audio compressionG.711 / G.722 / G.726 / AAC
Sampling frequency8 kHz 16 kHz 32 kHz 44.1 kHz 48 kHz
Bit rate 16 Kbps ~ 256 Kbps
Network features
IP connection1 RJ45 (10M / 100M)
ONVIFYes, type S, G, T and M
Management softwareMilesight CMS
IP address filterYes
Network disconnectionYes
Video analysis
Detection typeAnalytical with human/vehicle classification in line/area crossing
AI FunctionsPeople counting, heat map
Crossing lineYes
IntrusionYes
Motion detectionYes
Abandoned objectYes
Missing objectYes
Video TamperYes
HeatmapYes
Loitering detectionYes
Classification Human / vehicleYes
People and objects countingYes
Storage
MicroSD-CardUp to 1TB
Storage Systems NAS / Micro SD / Recorder
Storage anomalyYes
ANR (Redundant Recording in SD)Yes
System (Cameras)
Reset buttonYes
DORI distance
Detect50 m
Observe19 m
Recognise10 m
Identify5 m
