HIKVISION PRO NO CCTV

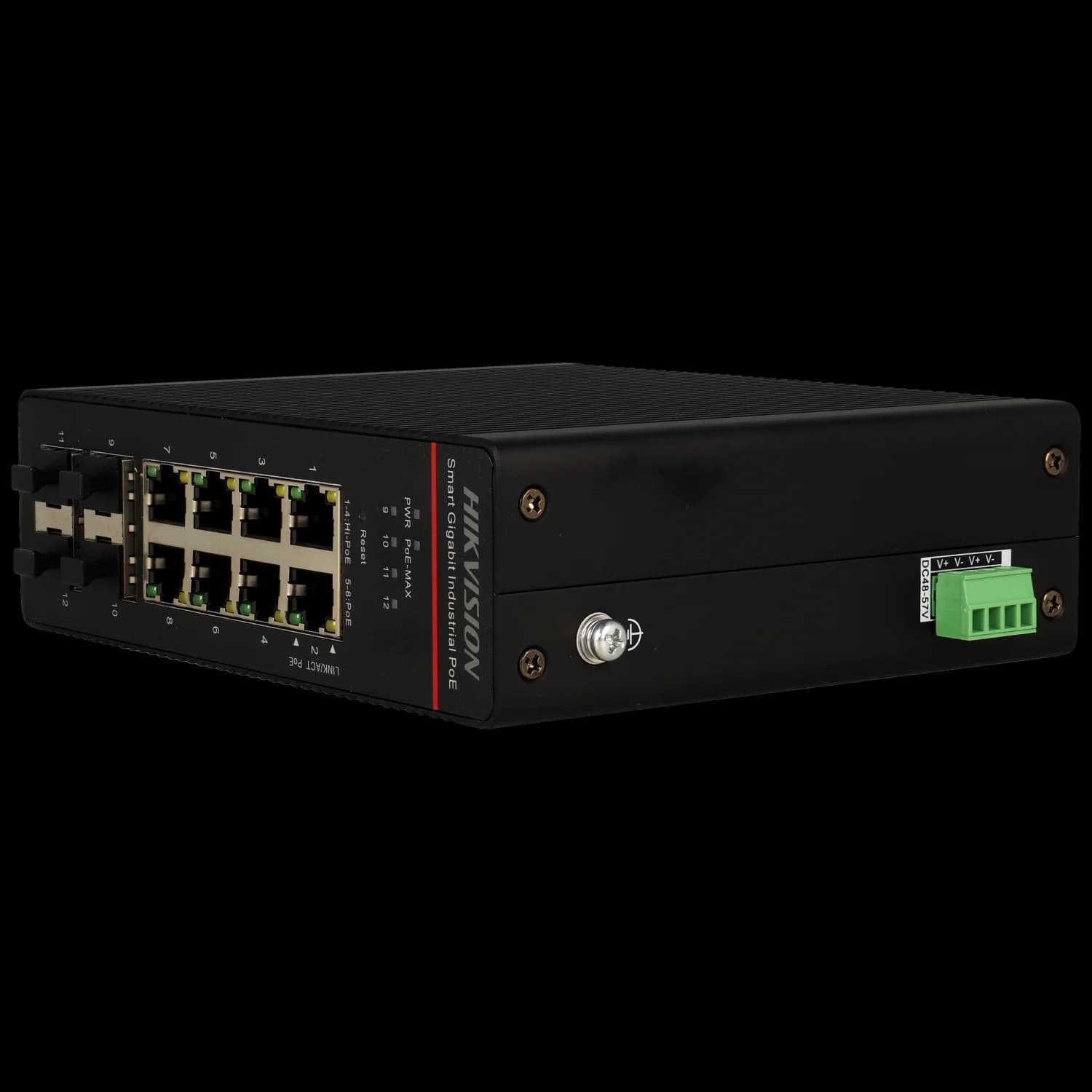

DS-3T1512HP-SI-8P4F
12 ports cloud switch with 8 PoE ports
- POE ports: 8
- Installation: DIN rail / desktop
- Fiber port: 4 x 1000
- POE Ports Speed: 10 / 100 / 1000
Sign in to see the price
Quantity1
HIKVISION PRO NO CCTV
DS-3T1512HP-SI-8P4F
specifications and features
Power consumption
Power modeDC
Voltage48V ~ 57V
Consumption (w)307W
Amperage7500mA
Standby consumption7W
Maximum consumption per port (PoE)Ports 1–4: 90W / Ports 5–8: 30W
Total maximum consumption (PoE)300W
Power supply includedNo
Ambient
Operating temperature-40 ºC ~ 75 ºC
Degree of protectionIP40
UseIndoor
Maximum humidity95%
Lightning protection6KV
Material and dimensions
InstallationDIN rail / desktop
Dimensions155 x 130 x 46 mm
MaterialMetal
Net weight840 g
Weight with packaging1160 g
ETHERNET PORTS
POE ports8
Fiber port4 x 1000
POE Ports Speed10 / 100 / 1000
Number of Ethernet ports12
NET STANDARD
IEEE802,3afYes
IEEE802,3atYes
IEEE802.3btSí, puertos 1 ~ 4
CHARACTERISTICS (SWITCH)
Data rate supported56 Gbps
Packet redirection speed41.7 Mpps
VLAN802.1Q
DHCPSí
Maximum transmission distance300 m
Buffer Memory4.1 Mb
Mirror portSí
PoE WatchdogYes
Spanning TreeYes, STP / RSTP / ERPS
QoSYes
Port AggregationLACP / Static aggregation (max. 8 groups)
IndustrialYes
SYSTEM (SWITCH)
MAC address table16K
Remote management
P2PYes
SoftwareHik Partner Pro
Reset switchYes
PoE port resetYes
Extended mode activationYes, independently per port
Port speed modificationYes
Actual power consumptionYes, total and per port
History of peak consumptionYes (up to 7 days)
Real-time traffic informationYes, by port
Connected device informationYes, for Hikvision equipment (IP, model, and SN)
Automatic topology diagramYes, for connected Hikvision devices
