40-zone wireless fire control panel
AJAX

EN54-FIREHUB-W

40-zone wireless fire control panel

Sign in to see the price

Quantity1

accessories

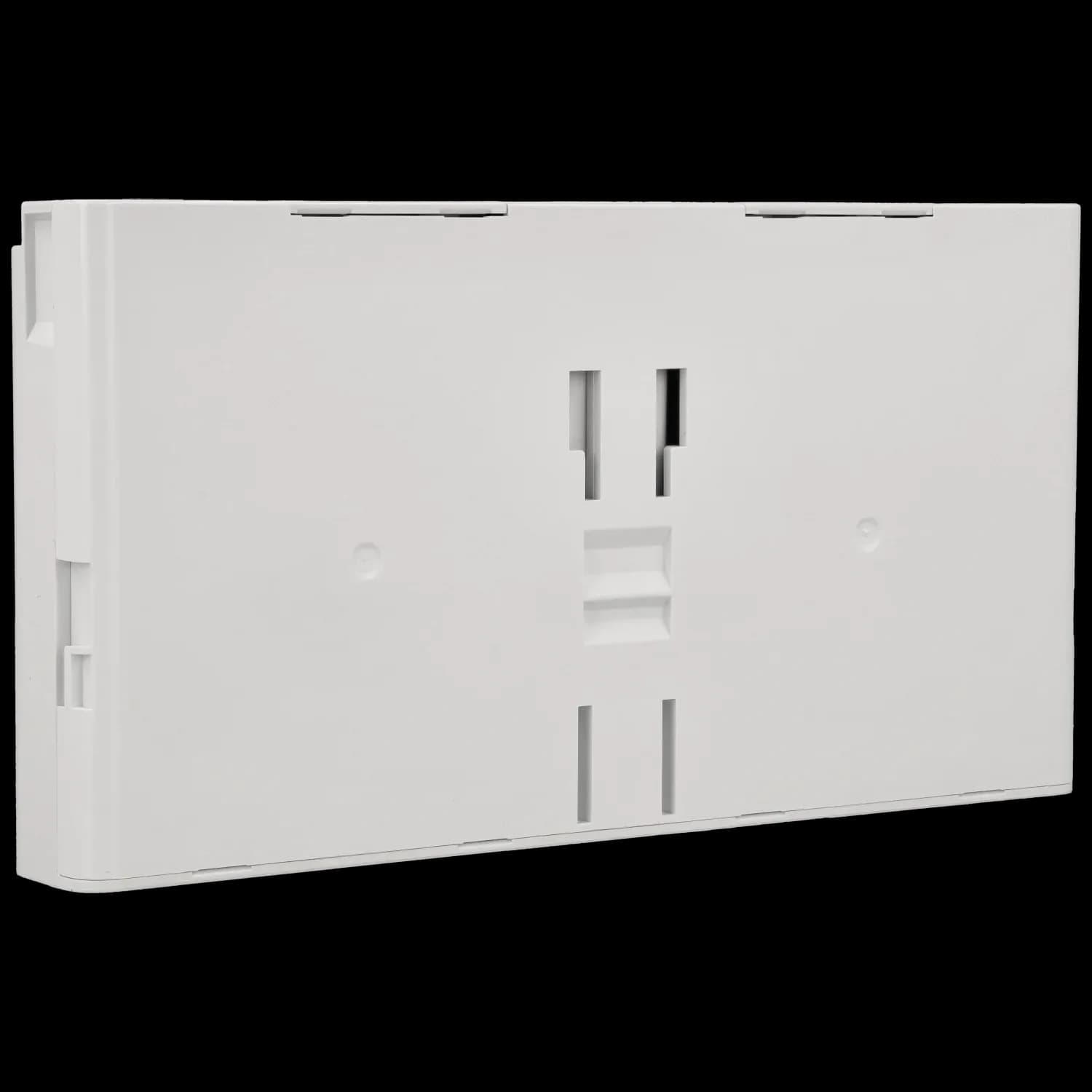

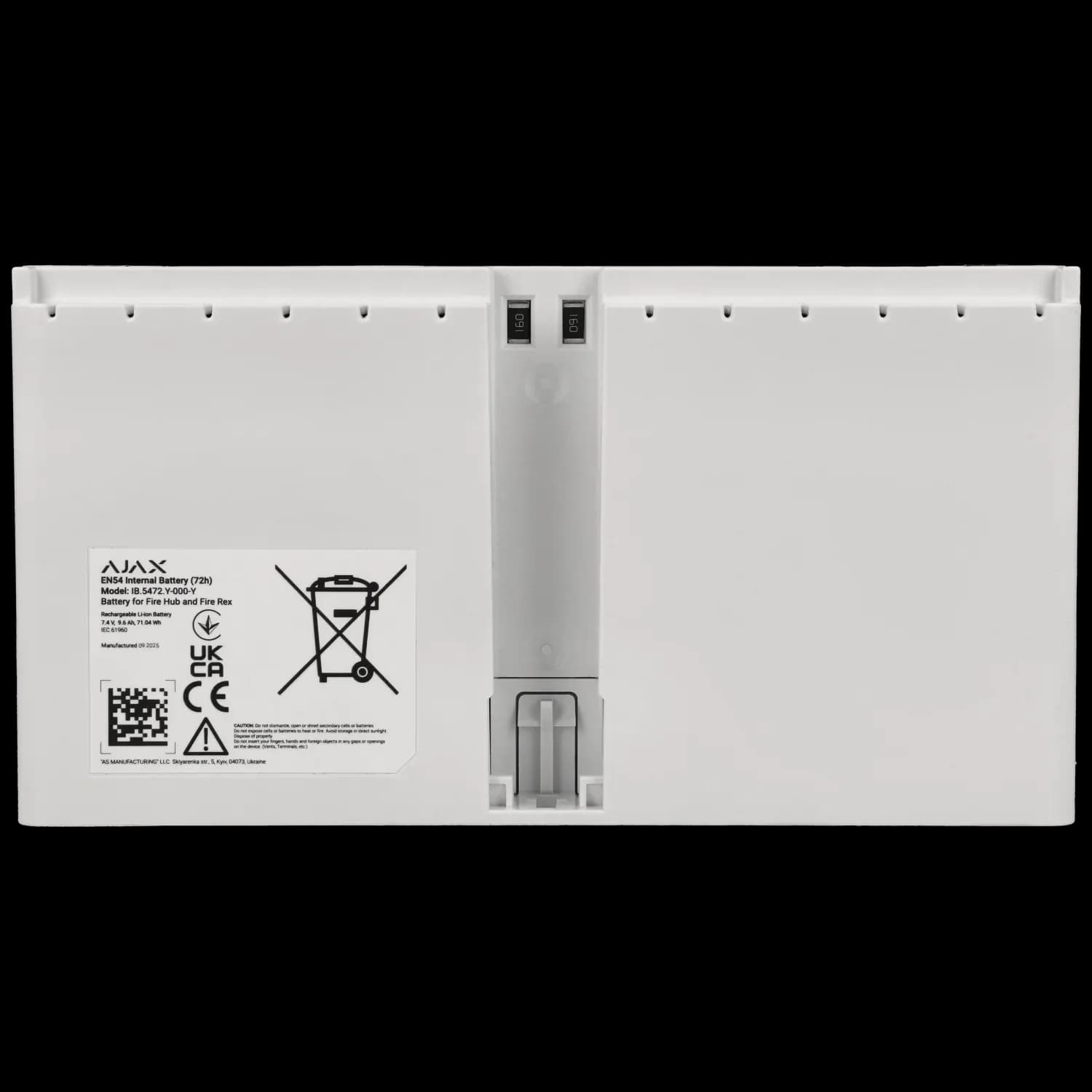

7.4 V 10Ah battery

EN54-INTERNALBATTERY-72H-W

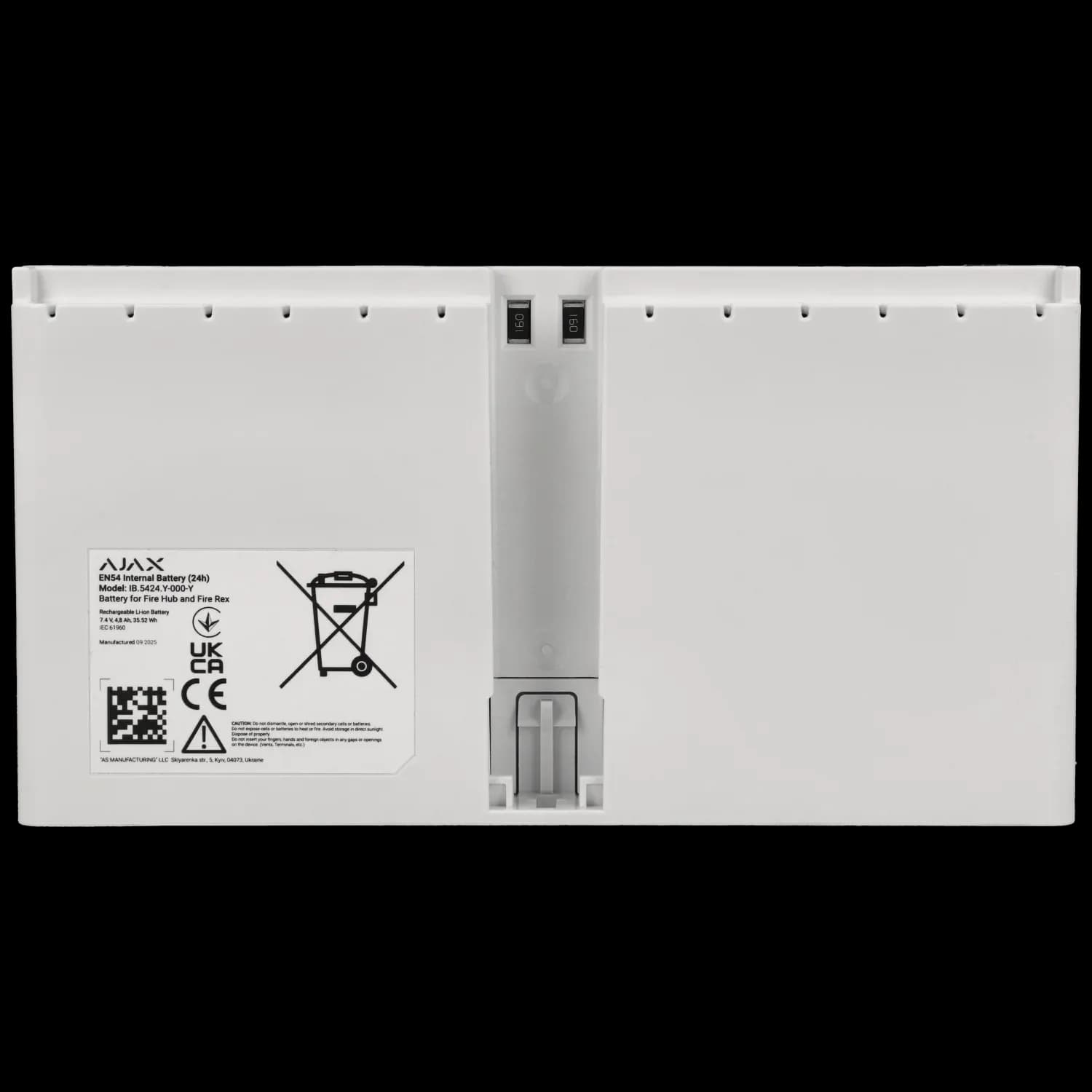

7.4 V 5Ah battery

EN54-INTERNALBATTERY-24H-W

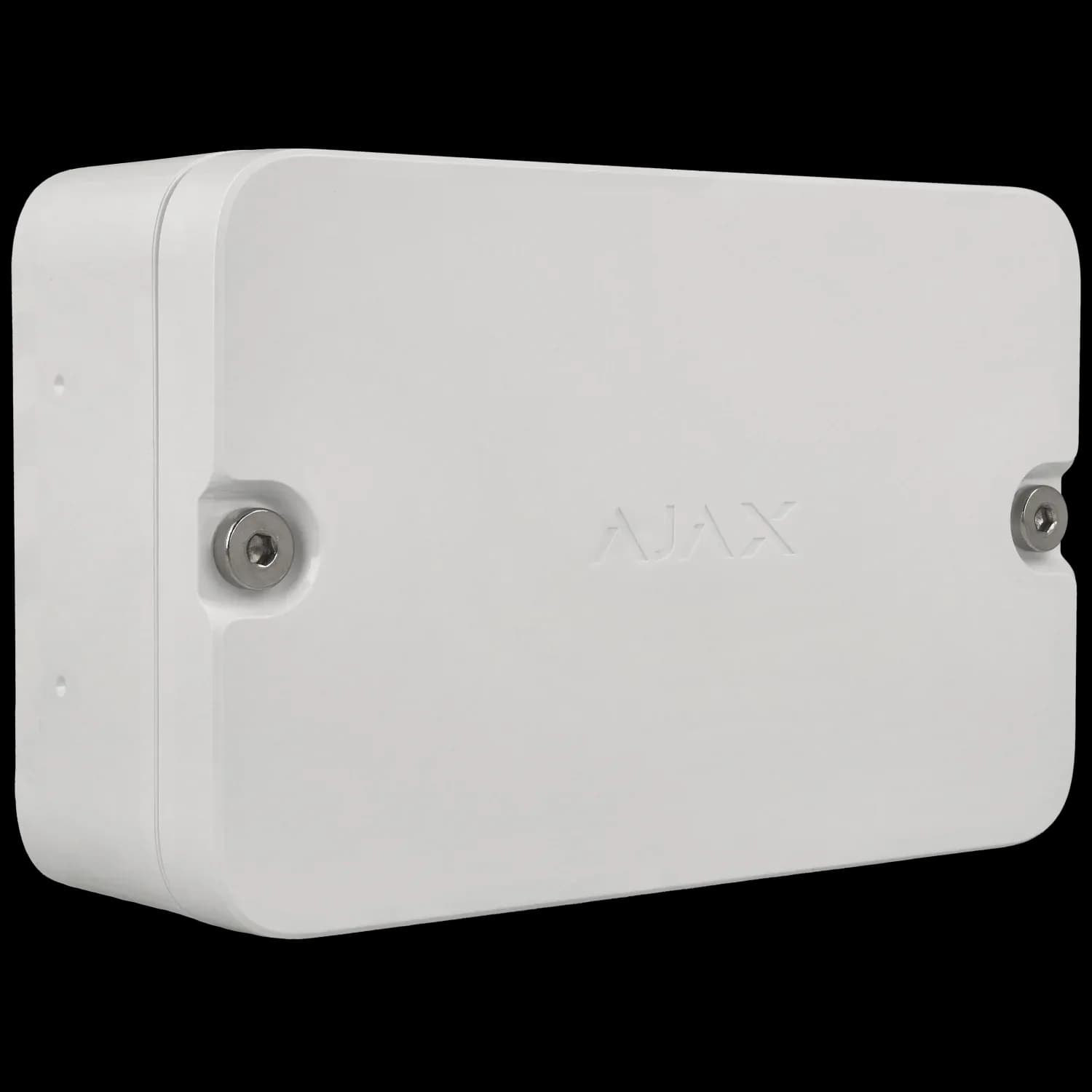

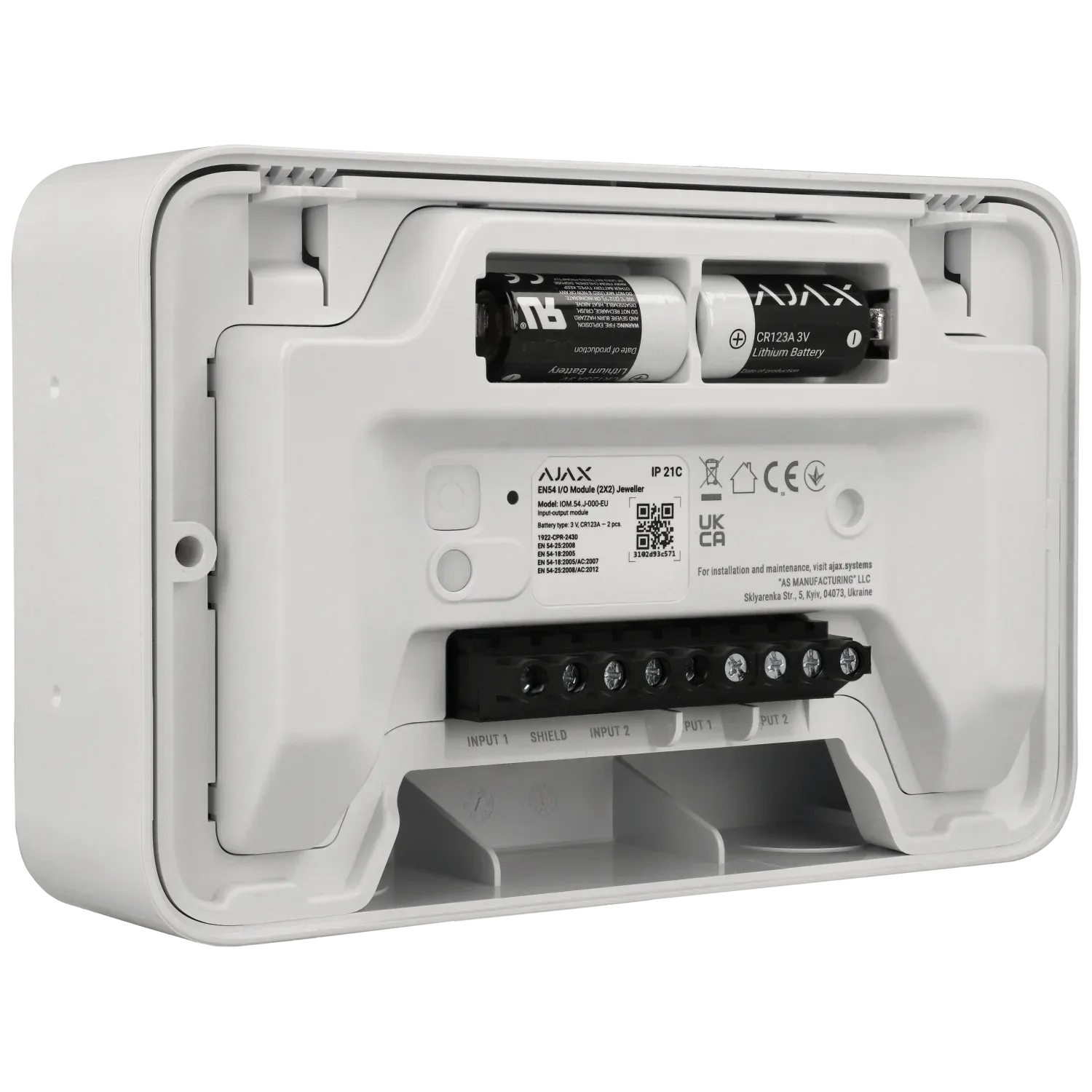

Module with 2 inputs and 2 outputs wired for fire control

EN54-MODULE-IO2X2-W

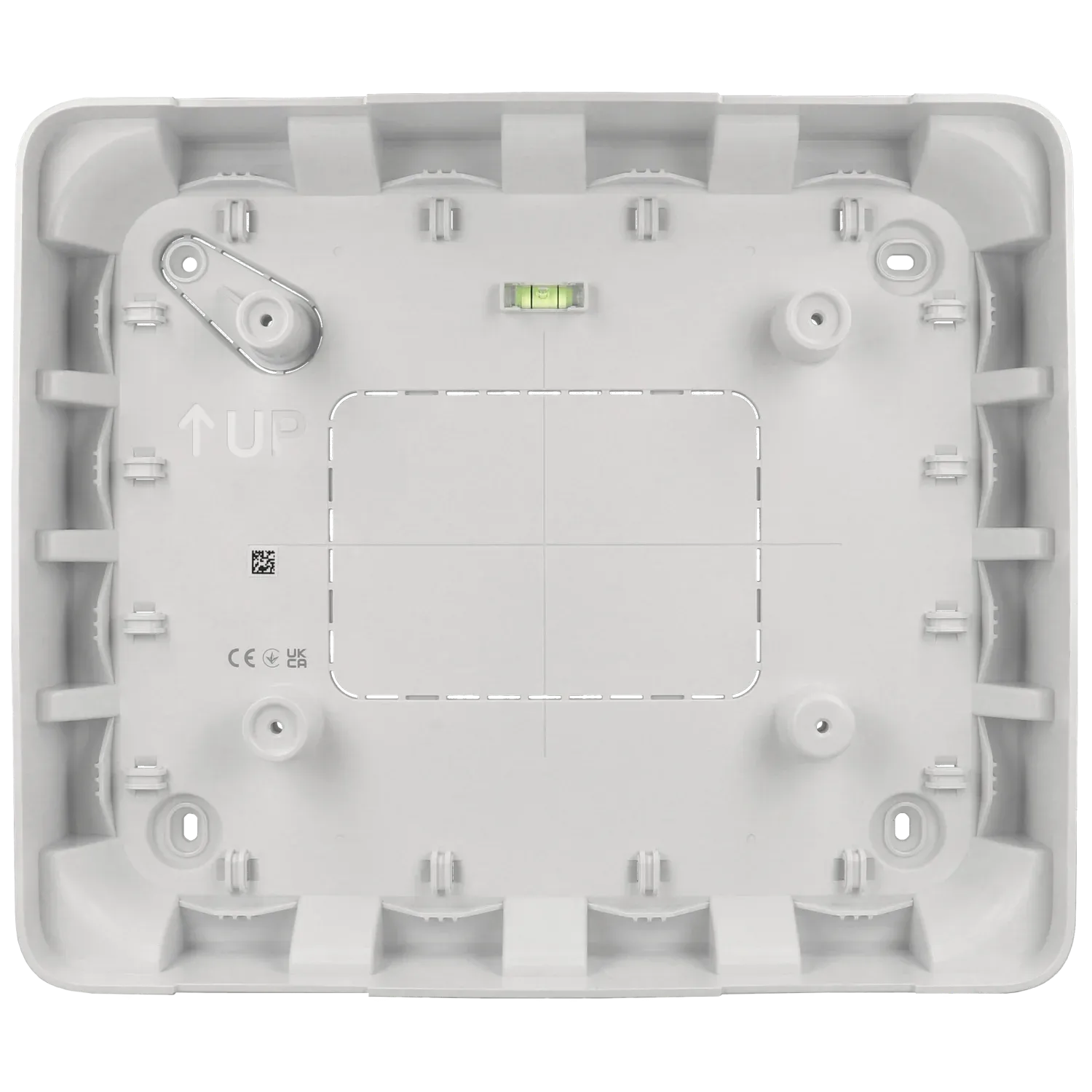

Surface-mounted housing

EN54-GLANDBOX-W

Wireless acoustic siren

EN54-SOUNDER-W

Wireless audible and visual siren

EN54-SOUNDER-VAD-W

Wireless heat detector

EN54-HEAT-W

Wireless heat detector with siren

EN54-HEAT-SOUNDER-W

Wireless smoke detector

EN54-SMOKE-W

Wireless smoke detector with siren

EN54-SMOKE-SOUNDER-W

Wireless visual siren

EN54-VAD-W

AJAX

EN54-FIREHUB-W

specifications and features

Power consumption

Power modeAC
Voltage110V ~ 240V
Consumption (w)60W
Battery supportEntry available
Battery model7.4V 5 / 10 Ah

Ambient

Operating temperature-10 ºC ~ 40 ºC
Degree of protectionIP20
UseIndoor
Maximum humidity75%

Material and dimensions

Dimensions263 x 223 x 54 mm
Net weight1550 g
Weight with packaging1900 g
ColorWhite

Certification

Grade2
NormativeEN54-2 / EN54-4 / EN54-13 / EN54-21 / EN54-25

Via Radio

Frequency868.0 MHz ~ 868.6 MHz
Transmission distanceUp to 1800 m (without obstacles)
Maximum power RFUp to 25 mW
ProtocolJeweller / Wings / TurboWings

Zones

Maximum number of zones40
Maximum number of rooms80
Maximum number of devices200
Keyboards10
Sirens10
Automated scenarios64

Communication

Wi-FiYes
EthernetYes, 8P8C up to 100 Mbps
2GYes
4GYes

Features

Number of users200
ScreenYes
Type of screenIPS touchscreen
LED indicatorYes
Screen resolution1024 x 600

Exits (Fire)

Fault relay1
Alarm relay1
